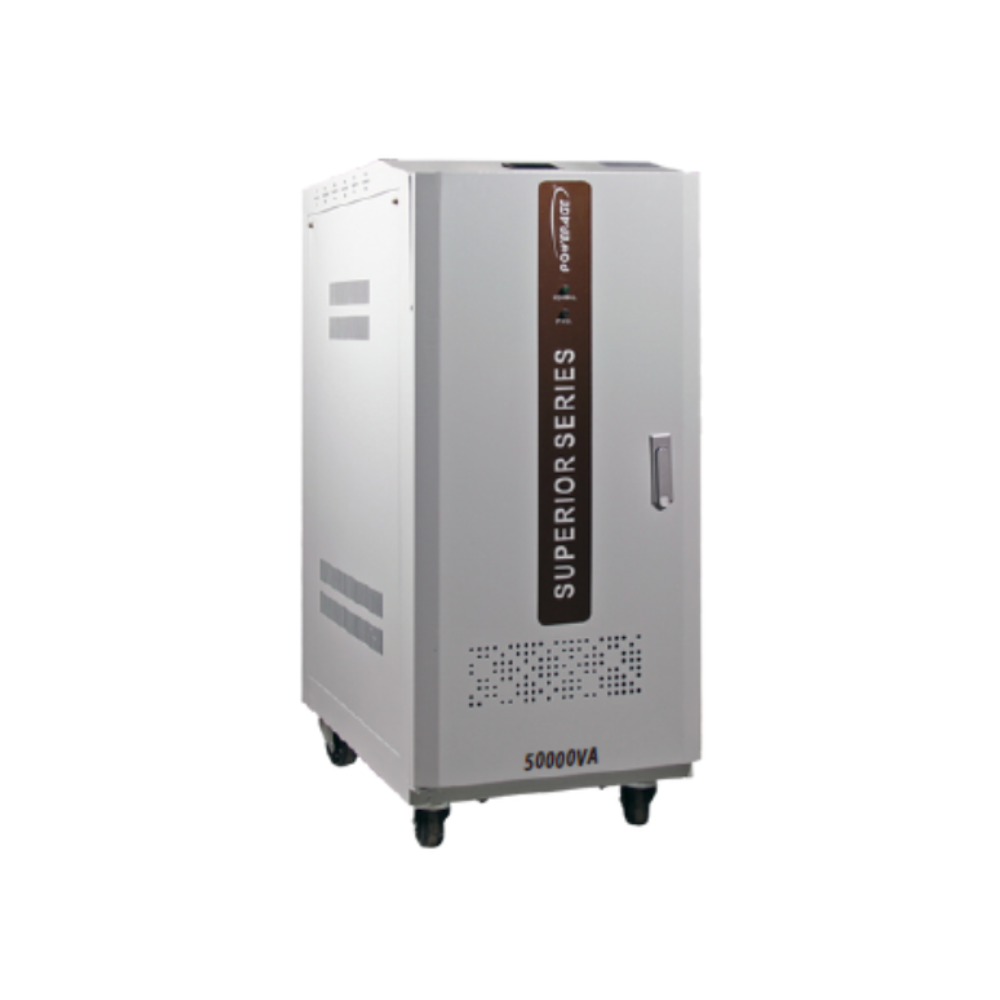

SUPERIOR SERIES AC VOLTAGE STABILIZER / LINE CONDITIONER

PAE-SR Series Servo-Controlled Voltage Stabilizers deliver high-precision output voltage accuracy to protect sensitive industrial, commercial, and telecom equipment from harmful fluctuations. Available in standard (140V–270V) and wide (80V–270V) input ranges, these robust units offer seamless servo motor control, low harmonic distortion, and capacities from 500VA to 50kVA. Ideal for data centers, food processing, renewable energy farms, and manufacturing environments requiring reliable, adjustable voltage stabilization.

Contact Now

SUPERIOR SERIES AC VOLTAGE STABILIZER / LINE CONDITIONER:

The Solution:

The Voltage Stabilizer has proven to be an effective solution able to prevent potentially dangerous situations created by input voltage instantly.

Key Industries & Applications for Voltage-Sensitive Devices

Protect sensitive equipment from voltage fluctuations across these critical sectors:

  • Industrial Manufacturing: Oil & gas operations, laser cutting systems, water jet shearing, tobacco production, textile mills, galvanic/electroplating processes, and general industrial machinery.

  • Food & Beverage Production: Food processing plants, intensive livestock breeding, packaging lines, and bottling facilities.

  • Commercial & Service Sector: Banking institutions, hotels & resorts, data centers, research laboratories, small businesses, and home/private users.

  • Telecommunications & Broadcasting: TV and radio stations, plus telecom network infrastructure.

  • Public & Institutional Facilities: Hospitals, government offices, and public institutions.

  • Renewable Energy Generation: Solar farms and wind farms.

Standard Features of Servo-Controlled Voltage Stabilizers

Key Technical Specifications

  • Voltage Stabilization Type: Servo Motor Control

  • Output Voltage Accuracy: High precision

  • Frequency: Compatible with nominal mains frequency

  • Load Variation Tolerance: Wide admitted range

  • Cooling System: Natural or forced (depending on model)

  • Ambient Temperature: Specified operating range

  • Storage Temperature: Specified non-operating range

  • Max Relative Humidity: Suitable for indoor use

  • Overload Capacity: Admitted overload limits

  • Harmonic Distortion: Low distortion output

  • Color: Standard industrial finish

  • Protection Degree: IP-rated enclosure

  • Instrumentation: Digital or analog indicators

  • Installation Type: Floor or wall mount options

  • Protection Features: Over-voltage, under-voltage, short circuit

    Voltage Stabilizer Models & Technical Data

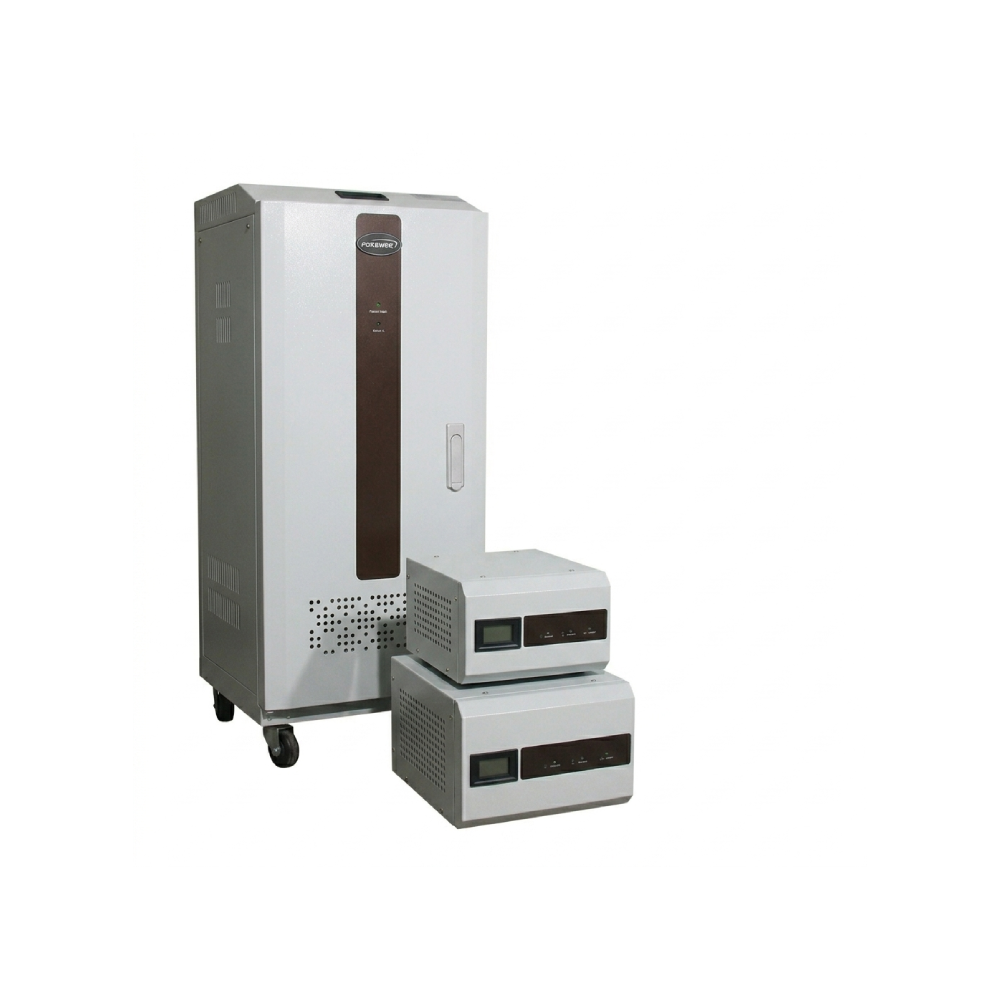

    Below are the PAE-SR series (standard input range) and PAE-SR(SP) series (wide input range) servo-controlled voltage stabilizers.

    PAE-SR Series – Input Range: 140V–270V

    Model Power Rating (kVA) Input Voltage Range (V) Dimensions W×D×H (mm)
    PAE-SR-500VA 0.5 kVA 140–270 190×190×135
    PAE-SR-1000VA 1.0 kVA 140–270 220×230×165
    PAE-SR-1500VA 1.5 kVA 140–270 220×230×165
    PAE-SR-2000VA 2.0 kVA 140–270 250×250×165
    PAE-SR-3000VA 3.0 kVA 140–270 335×210×265
    PAE-SR-5000VA 5.0 kVA 140–270 350×220×285
    PAE-SR-8000VA 8.0 kVA 140–270 410×260×565
    PAE-SR-10kVA 10 kVA 140–270 415×300×620
    PAE-SR-15kVA 15 kVA 140–270 485×300×620
    PAE-SR-20kVA 20 kVA 140–270 485×300×620
    PAE-SR-30kVA 30 kVA 140–270 530×330×670
    PAE-SR-50kVA 50 kVA 140–270 550×380×920

    PAE-SR(SP) Series – Wide Input Range: 80V–270V

    Model Power Rating (kVA) Input Voltage Range (V) Dimensions W×D×H (mm)
    PAE-SR(SP)-500VA 0.5 kVA 80–270 190×190×135
    PAE-SR(SP)-1000VA 1.0 kVA 80–270 220×230×165
    PAE-SR(SP)-1500VA 1.5 kVA 80–270 220×230×165
    PAE-SR(SP)-2000VA 2.0 kVA 80–270 250×250×165
    PAE-SR(SP)-3000VA 3.0 kVA 80–270 335×210×265
    PAE-SR(SP)-5000VA 5.0 kVA 80–270 350×230×285
    PAE-SR(SP)-8000VA 8.0 kVA 80–270 410×240×405
    PAE-SR(SP)-10kVA 10 kVA 80–270 415×300×620
    PAE-SR(SP)-15kVA 15 kVA 80–270 485×300×620
    PAE-SR(SP)-20kVA 20 kVA 80–270 485×300×780
    PAE-SR(SP)-30kVA 30 kVA 80–270 530×330×780
    PAE-SR(SP)-50kVA 50 kVA 80–270 850×380×920

    Note: Output voltage can be adjusted to any selected nominal value. The chosen value becomes the new reference for all stabilizer parameters, ensuring flexible adaptation to your equipment’s needs.
